                     Technical data

Unit structure 1.75″×1Tweeter 12″×1Bass

Rated power    550W

Peak power      1100W

Rated impedance    8Ω

Sensitivity         98dB1W/1M

Max sound SPL         131dB

Frequency response         45Hz-20KHz(±3dB)


Physical data

Box structure  Positive trapezoidal cabinet

Box material    18mm multilayer birch splint

Finish        Water-based piano lacquer

Metal treatment     High temperature paint handling

Face mask Material Steel net+Spongedustnetwork/netcloth

Lifting way        19×M8 suspensionsings

Box size   570mm*420mm*370mm

Weight    26KG


Product Highlights

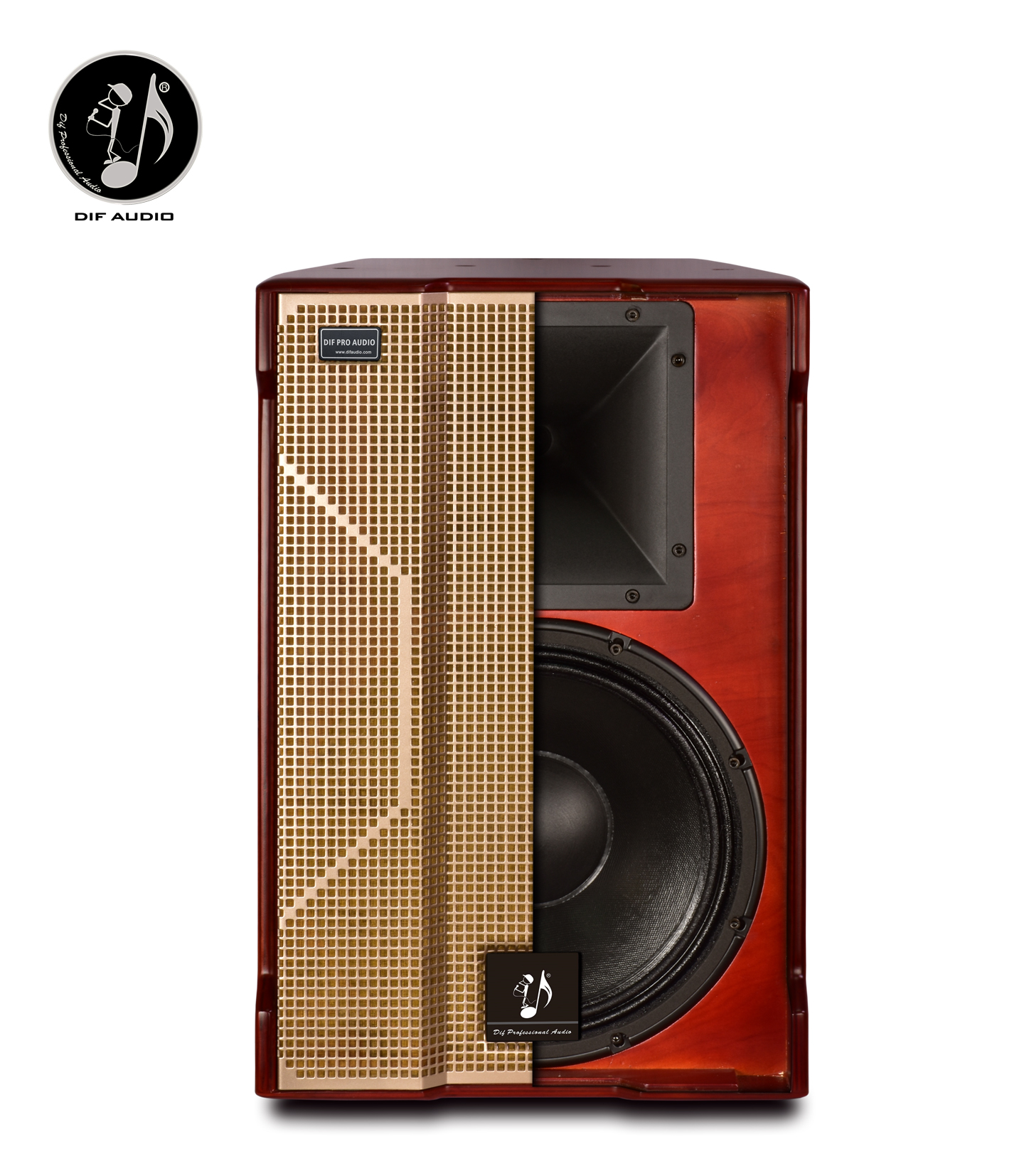

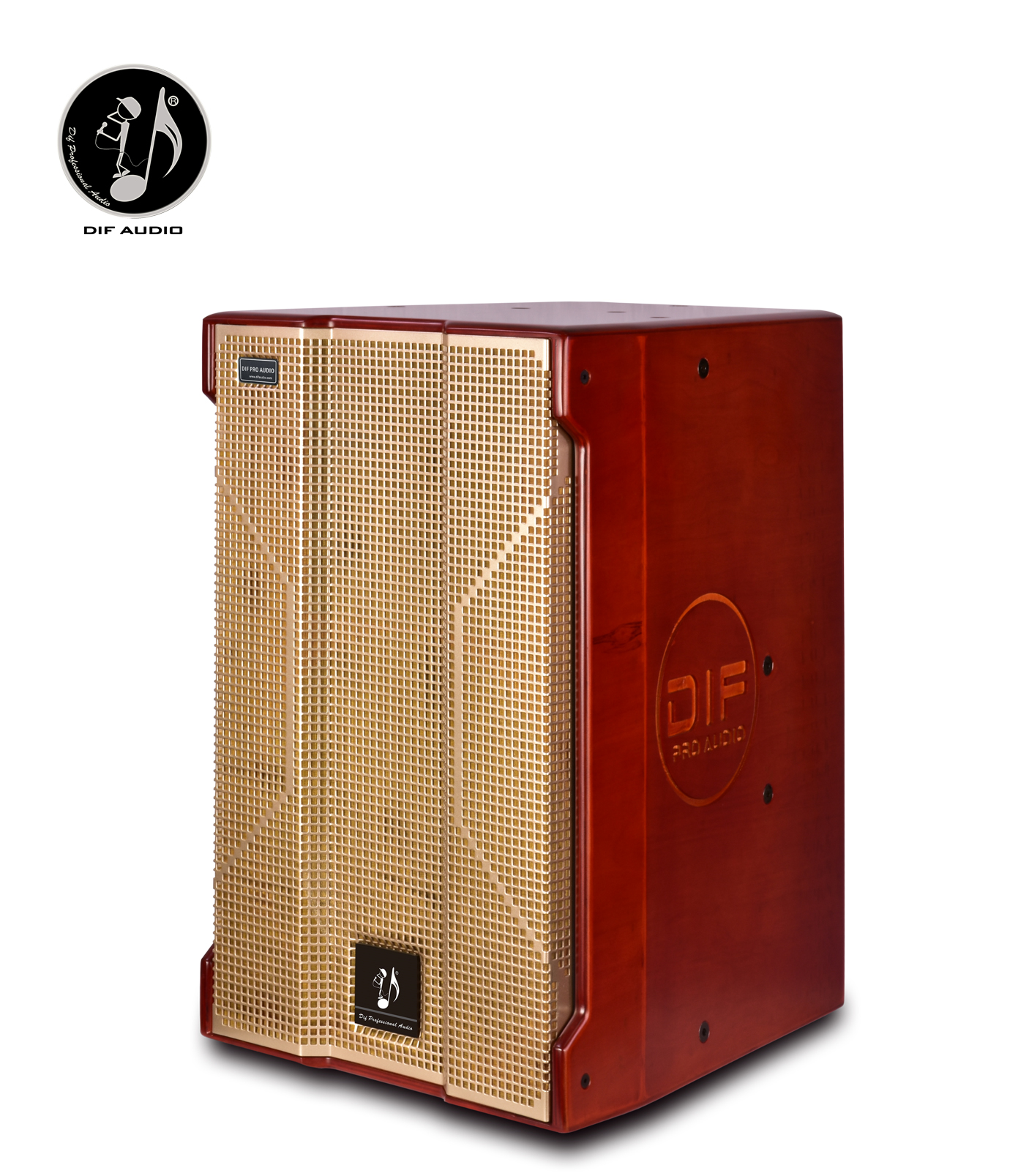

"RT-12 is a two tone Hi-Fi class near-field full frequency loudspeaker system. The bass unit adopts DIF R1286T-1, and the high pitch unit adopts DIF D145-2 high quality HIFI grade quality.


Under the rated condition, the loudspeaker power is measured to be 500 watts, and the peak music power can reach 1000W. In order to take into account the needs of listening to high-quality music, singing and timely singing, we have developed and implemented the technology of variable frequency gain variable compensation. When singing, the accompaniment music is soft, and the singer's voice is full and transparent. In the dance, the drum with heavy metal Madden wild surrounded, enough to let you enjoy the immersive HI. All this is achieved without the subwoofer, which requires our high and low bass drivers themselves to have extraordinary qualities. Plus a good frequency division network design and selected electronic components, of course, a solid box structure is also essential.


In order to effectively reduce the sharp and difficult sound emitted by the high frequency odd harmonics, we have carefully calculated and repeated the simulation experiments on the thickness of the sound box, the size of the mesh, the coordination of the blasting sea cotton, so that the sound replay can achieve the best effect.


In the installation and hanging of products, our RT series of products have made all kinds of hanging installation accessories, not only convenient to install, but also effectively strengthen the sturdy and safety of the structure of the box.


RT series products are suitable for all kinds of high-end bars, private clubs, private villas, restaurants, small multi-function rooms, etc.
