British DIF Audio: New Release
来源: | Author:DIF PRO AUDIO | release time :2019-07-20 | 2268 次浏览 | 分享到:
British DIF Audio: New Release

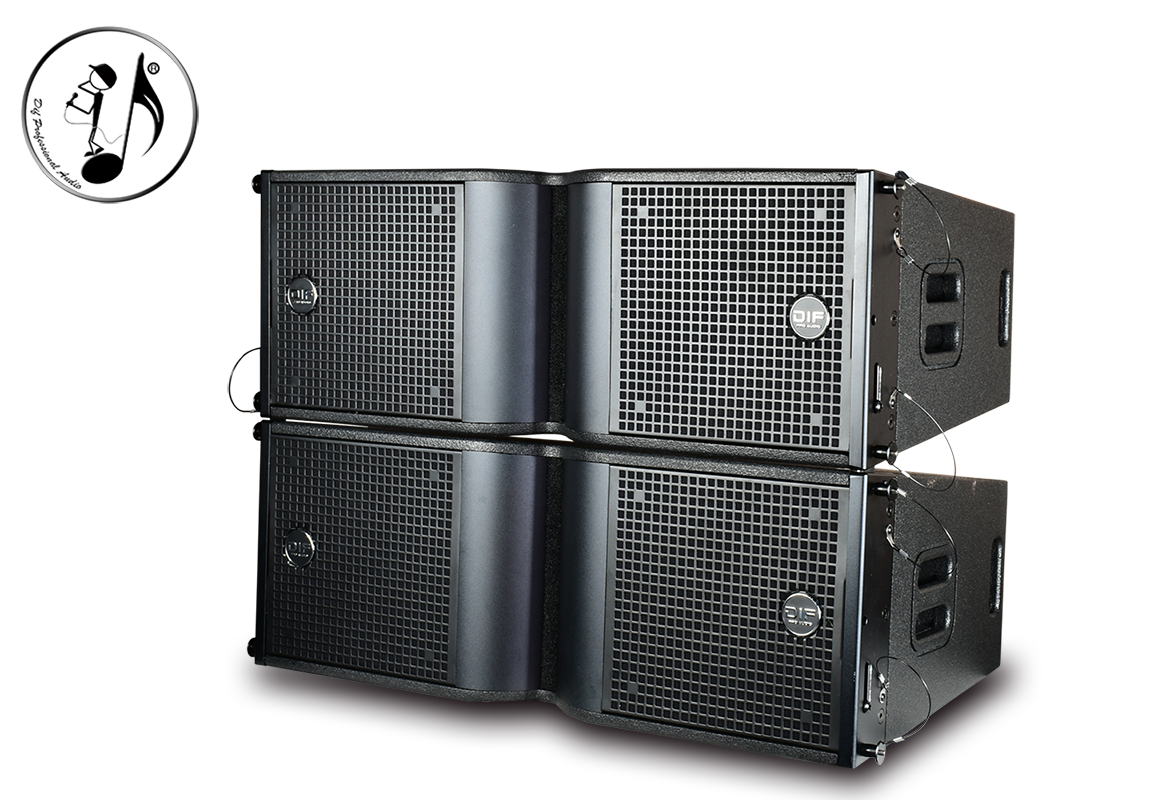

Model: RT-210
System type: two-way full range
Rated impedance: 8 Ohms
Rated power: 600 W
Peak power: 1200 W
Sensitivity (1W/1M): 101 dB
Maximum sound pressure level (1W/1M): 129 dB
Frequency response (±3dB): 50-20KHz
Coverage angle (H*V): 90*15
Lifting / installation: linear hanging
Connection socket: NL4 speakon*2
Box material: 18 PCT multilayer splint
Case surface treatment: black waterproof and wear-resistant granular catalytic polyurethane paint
Woofer: 10"*2, 65 core, aluminum basin frame cloth cone
Tweeter: horn treble 3"*1, drive /75 core
The DT-210 takes full advantage of the wavefront correction technology to deliver clear, precise sound with a unique near-field effect that provides an unparalleled sense of hearing for the listener. Widely used in theaters, multi-purpose halls, churches, schools, large and medium-sized sports fields, large and medium-sized indoor and outdoor performances, language reinforcement, etc.

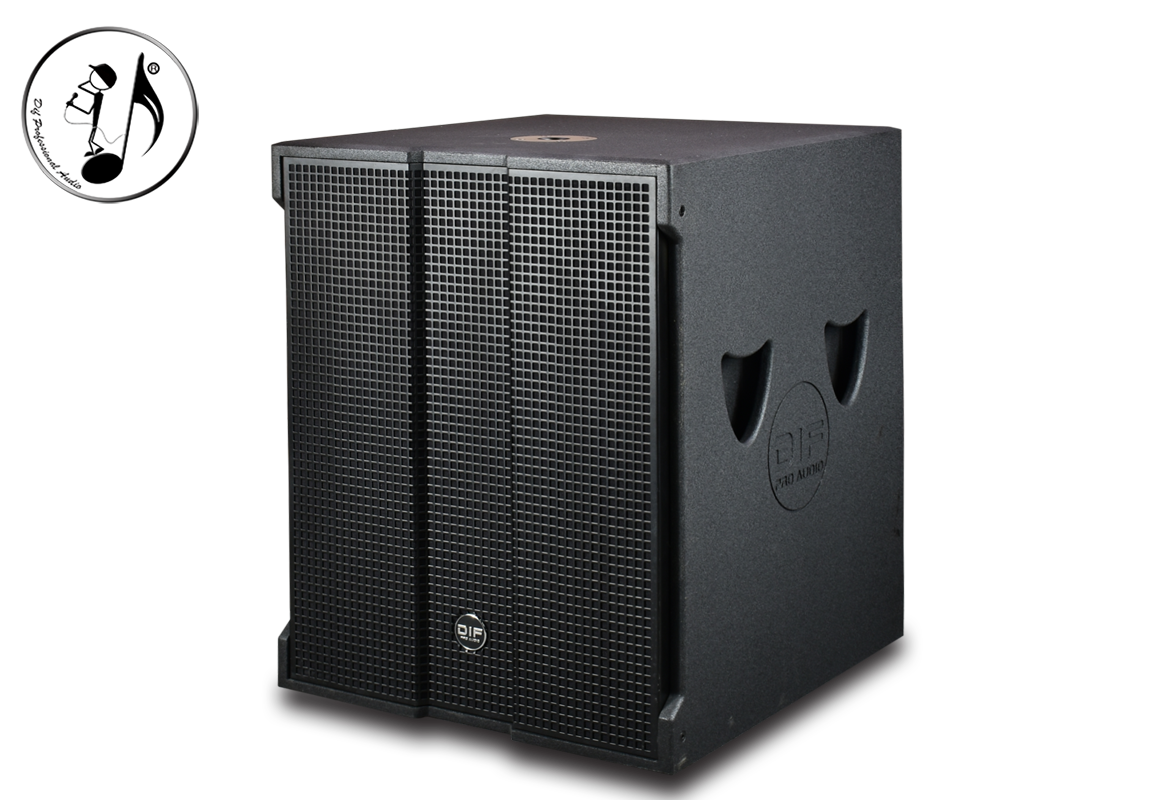

Speaker Type Passive Low Frequency Speaker
Drive LF: 1 x 18′′ Bass Drive Unit
Crossover point: 100HZ-130HZ external crossover network
Connection Input: 1×NL4
Output: 1 × NL4
Connection method: ±1...LF
Enclosure Type: Square box material 18mm imported multi-layer splint
Surface treatment: box black polyurethane spray
Black mesh porous powder steel mesh
Frequency response (±3dB): 30-500Hz
Speaker Power Rated Power RMS: 1000W
Continuous power: 2000W
Maximum power: 4000W
Directivity ----
Sensitivity (1W/1M) 99db SPL
Maximum sound pressure level: 128db SPL
Rated impedance (single): 8Ω

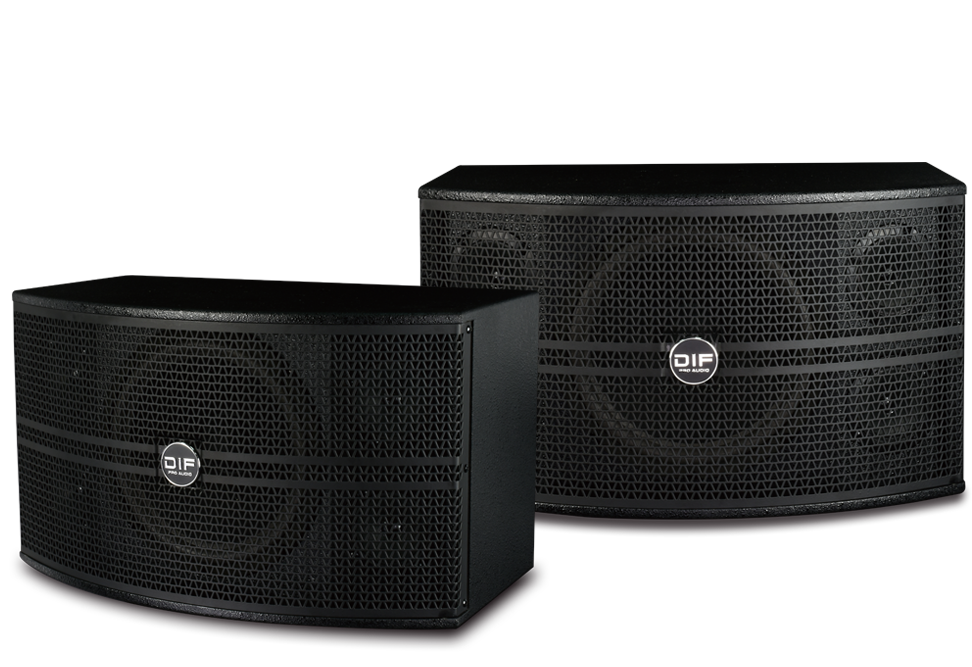

Features & Benefits:
Two-way 12-inch low-frequency drive unit and 1.4-inch (Φ34mm), all using British DIF custom units.
Small volume, high sensitivity, loud sound pressure, clear language, can meet different sound reinforcement places.
Advanced crossover design ensures reliable operation of the drive
M8 multi-point hanging method for easy lifting
Widely used in KTV, multi-purpose halls, teaching, auditorium, various high-end conference rooms and other sound reinforcement places

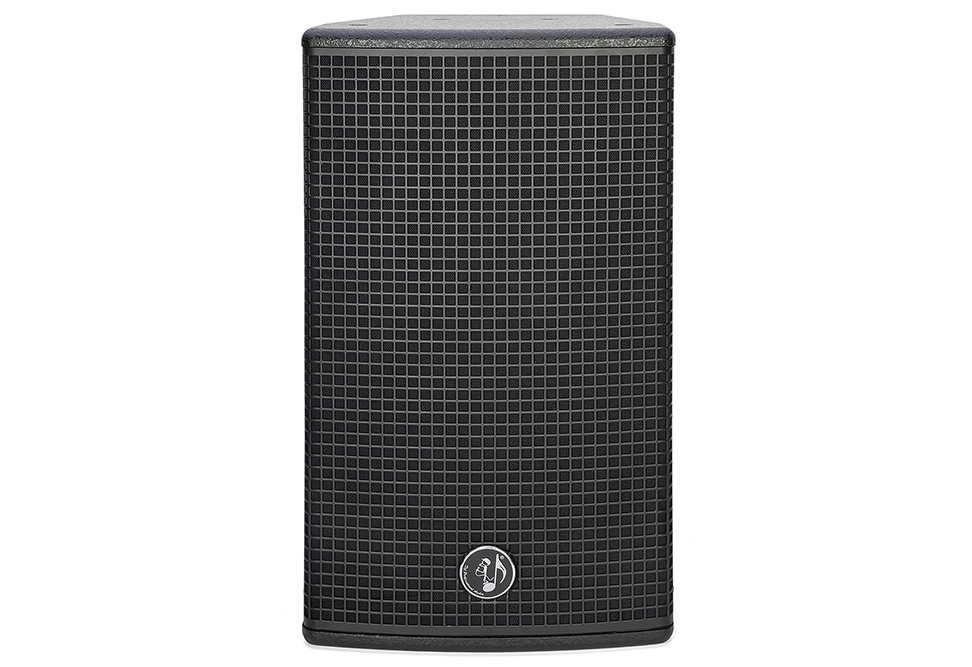

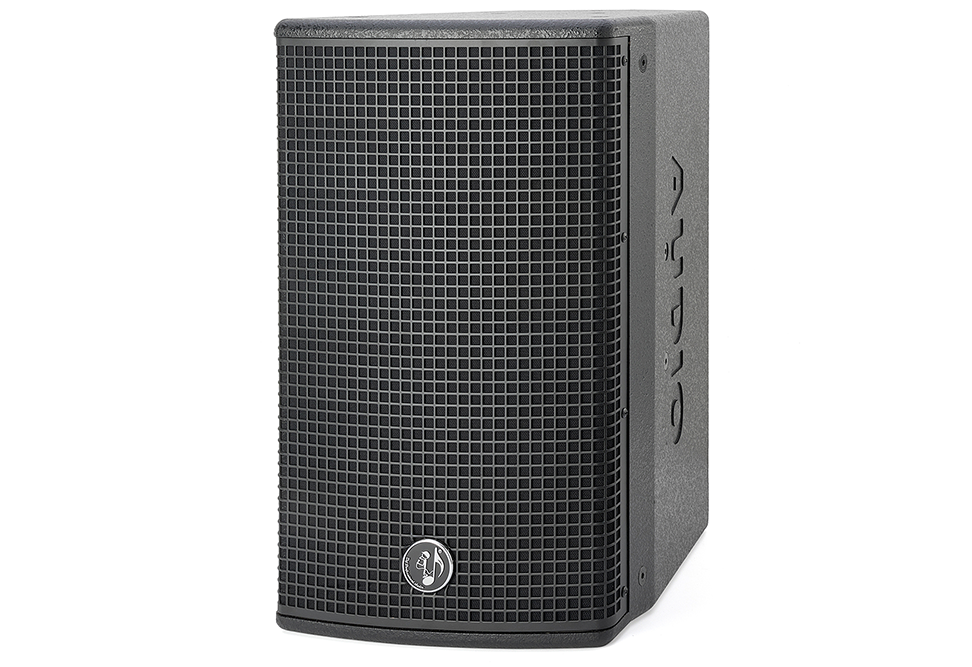

Basic characteristics
Speaker Type Two-way Passive Full Range Speaker
Driver HF: 1.4′′×1 high frequency drive unit
LF: 12′′×1 medium and low frequency drive unit
Surface treatment box black high-grade environmental water-based spraying
Black porous powdered steel mesh and soundproof speaker mesh
Frequency response (±3dB): 50-20KHz continuous power 300W
Maximum power 600W
Directivity 90°×60° (H×V)
Sensitivity (1W/1M) 97db SPL
Maximum sound pressure level: 122db SPL
Rated impedance (single) 8Ω Product
size: 605 mm high x 350 mm deep x 380 mm wide
